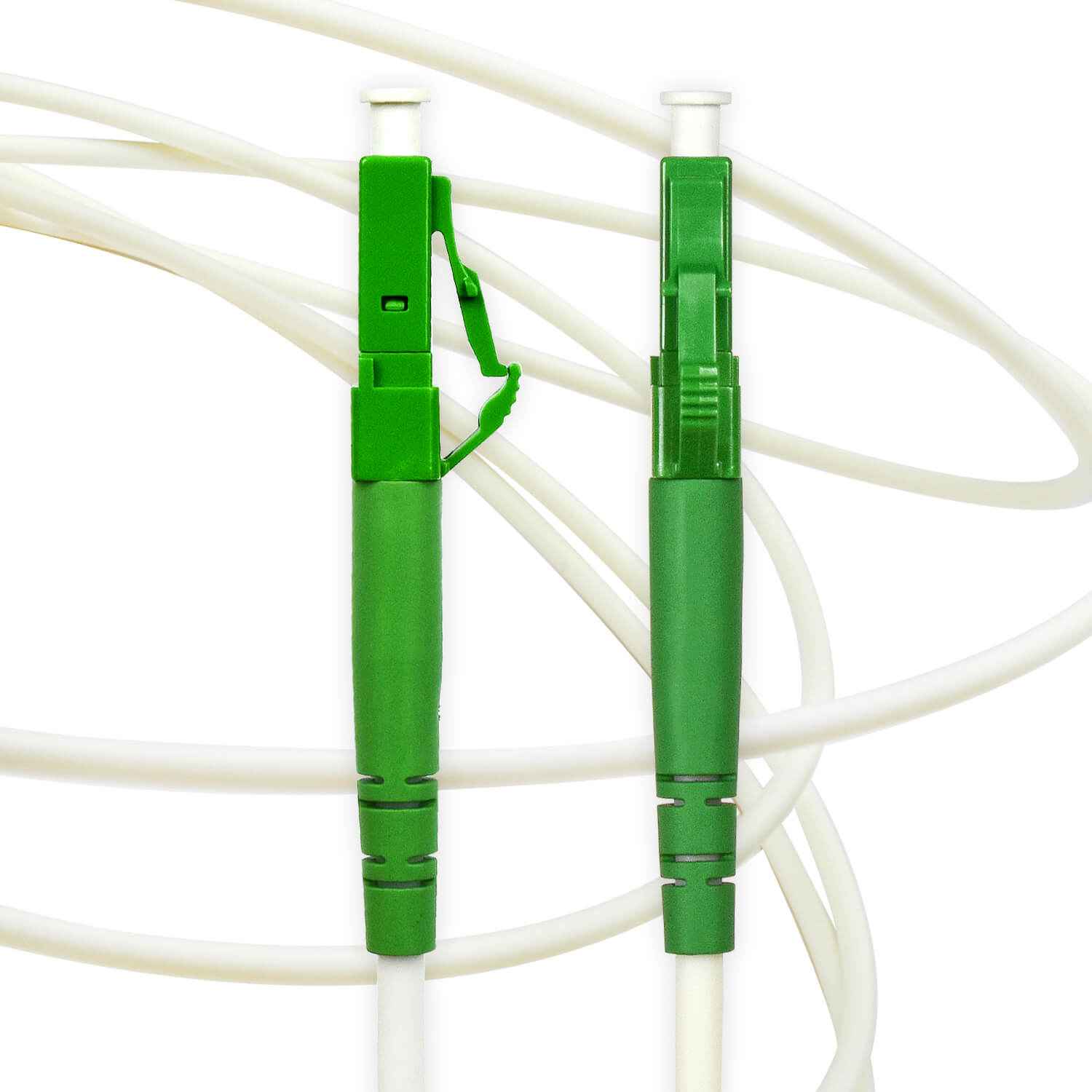

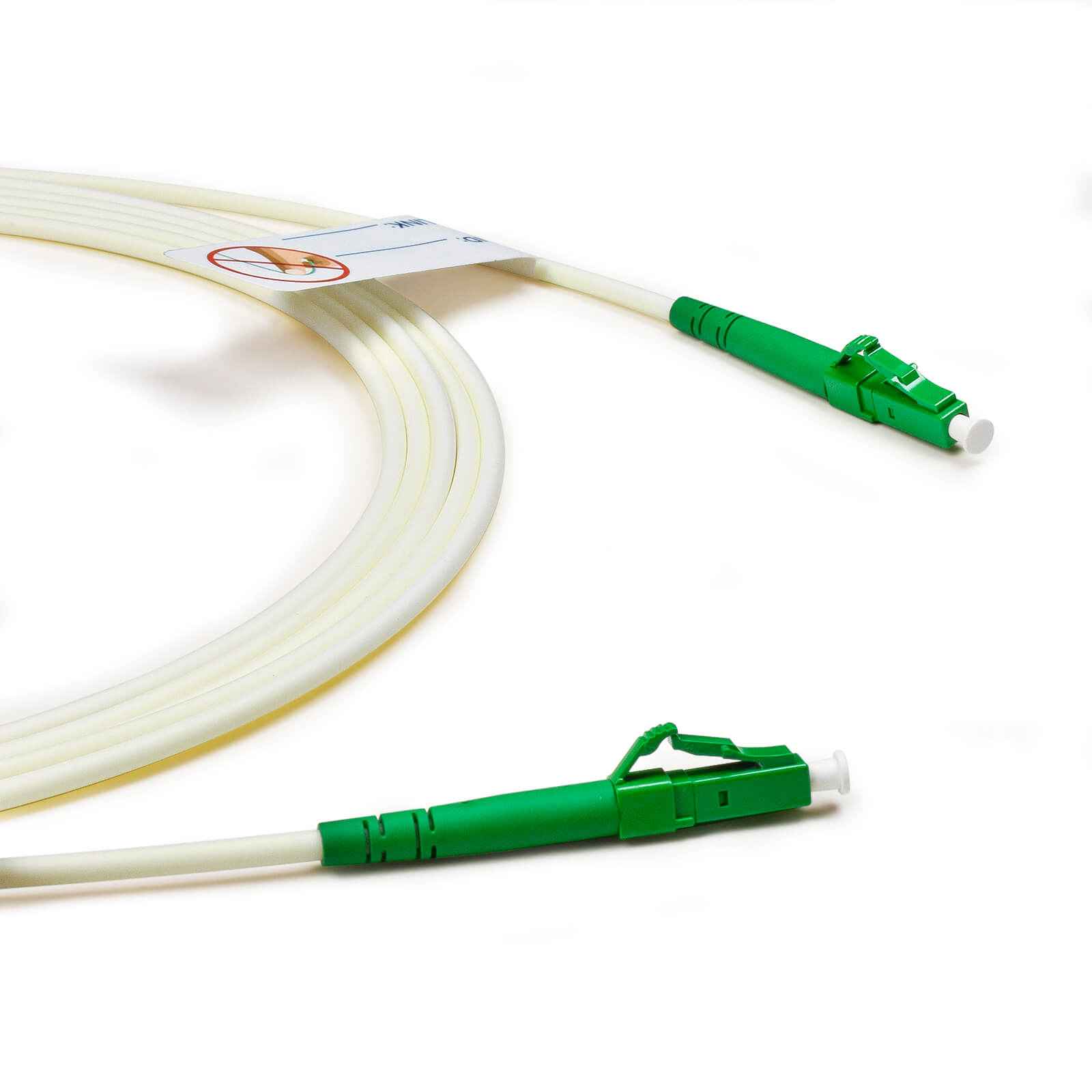

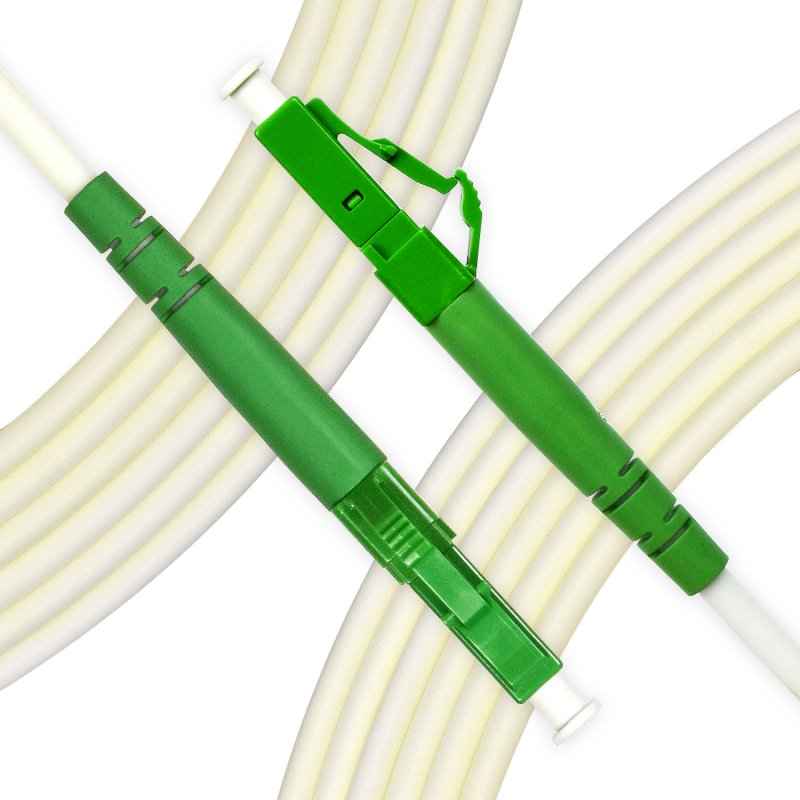

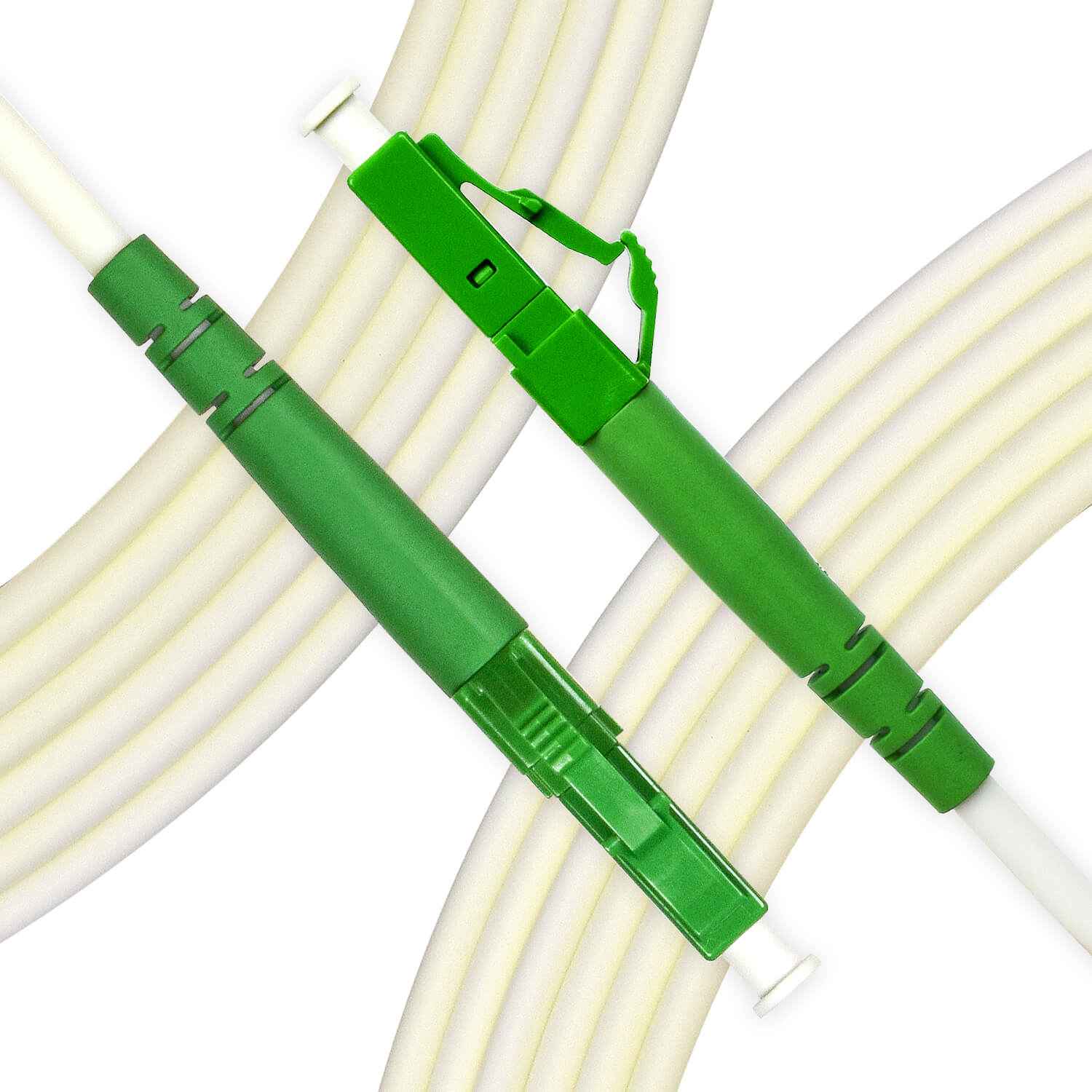

OS2单模单联 LC/APC 光纤跳线
  • Low insertion loss, high return loss
  • High Speed

  • OS2 LC/APC-LC/APC fiber optic cable 1/10G simplex singlemode, 9/125 optical fiber.
  • Guaranteed Quality – Complies with TIA 568-C. 3/604-10/492AAAC, RoHS, UL 910, CE specifications. And all cables are 100% optically tested for insertion loss to ensure high speed and low loss.
  • Plug and Play – With grade A 9/125 duplex fiber, PVC jacket and high quality components. And the combination of LC connectors in a protective yoke, strain relief boots and zirconia ceramic ferrules provides reliable performance.
  • Wide Application – The patch cable can be used multiple times and can be used for connections to CATV (cable TV), telecommunication networks, computer fiber optic networks and fiber optic test equipment, etc.


Connector Type

LC APC to LC APC Fiber Grade G.657.A1

Fiber Mode

OS2 9/125μm Wavelength 1310/1550nm

Insertion Loss

≤0.3dB Return Loss ≥60dB

Min. Bend Radius
(Fiber Core)

10mm Min. Bend Radius
(Fiber Cable)
10/5D (Dynamic/Static)

Attenuation at 1310 nm

0.36 dB/km Attenuation at 1550 nm 0.22 dB/km

Fiber Count

Simplex Cable Diameter 3.0mm

Cable Jacket

PVC/LSZH Polarity A (Tx) to B (Rx)

Operating Temperature

-20~70°C Storage Temperature -40~80°C
