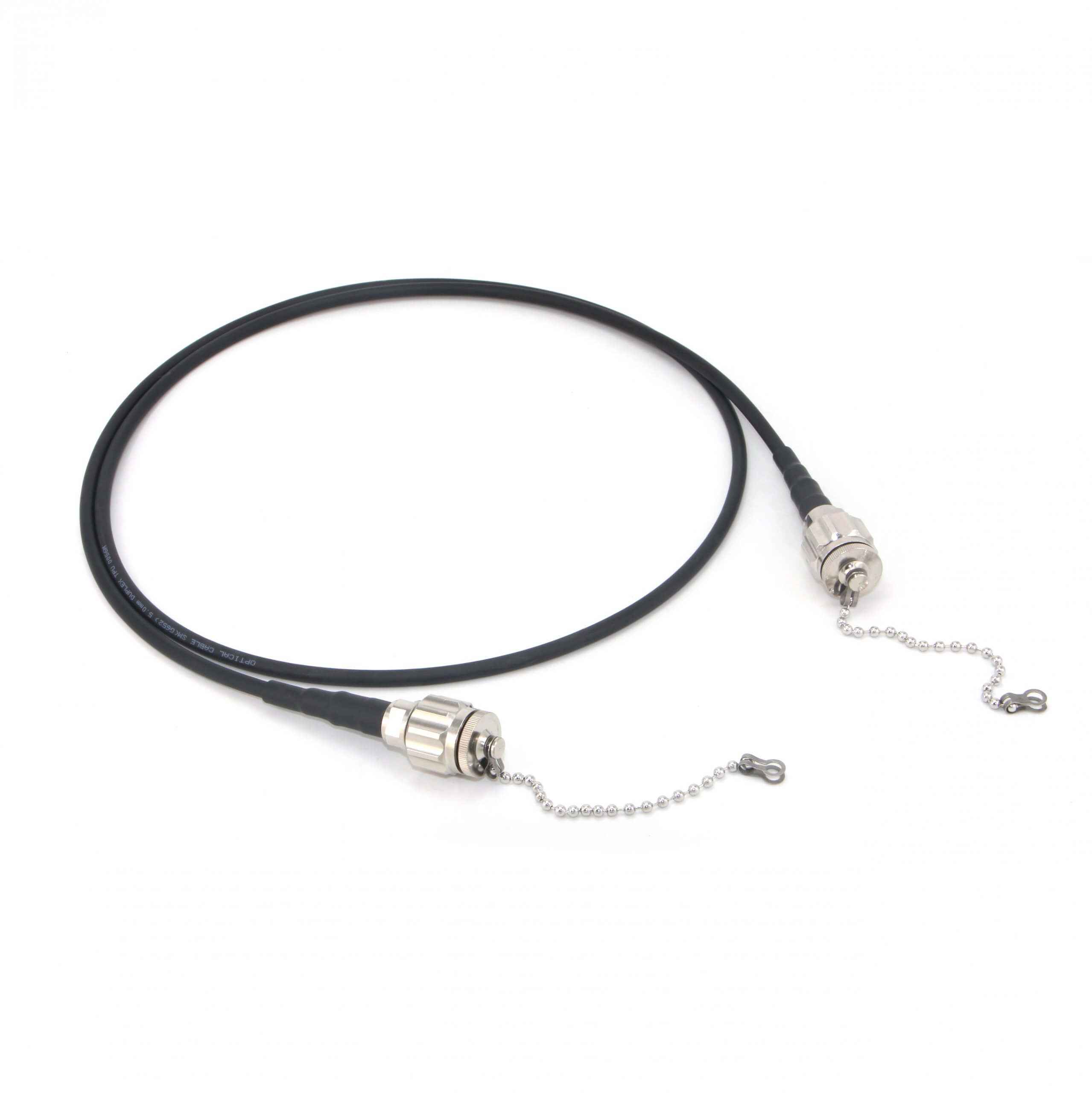

Field fiber optic cable is a military fiber optic cable, specifically for the field and complex environment need to quickly wiring or repeatedly put away the use of metal-free fiber optic cable design. The number of cores of field fiber optic cable is mostly 1, 2, 4 cores.
Specially designed for the field and complex environment need to quickly wiring or repeatedly put away under the use of conditions and designed for metal-free fiber optic cable, with light weight, easy to carry; anti-tension, anti-pressure, high strength to weight ratio; good flexibility, easy to bend; oil-resistant, wear-resistant, flame retardant; applicable to a wide range of temperatures and other characteristics. It is suitable for military field communication system fast wiring or repeatedly put away; radar, aviation and ship wiring; oil fields, mines, ports, TV live relay, communication line repair and other severe conditions.
Adopting compact all-media wiring type structure, the fiber optic cable has a very high strength-to-weight ratio, which is convenient for fast wiring or repeated take-up and take-down.
Composite structure of high-strength optical fiber secondary coating, providing the best temperature performance and minimal additional attenuation, to ensure the reliability and service life of optical cable.
Special high strength center reinforcement element to ensure the strength and bending performance of the fiber optic cable.Large area of aramid reinforcing fiber provides extremely high mechanical strength for the fiber optic cable.
SZ stranded tight jacketed fiber and single spiral stranded aramid fiber are combined to ensure that the field optical cable has a large tensile strain capacity.
Thermoplastic polyurethane elastomer flame retardant sheath for the fiber optic cable provides good structural stability and resistance to pressure, abrasion, oil, low temperature flexibility and flame retardant properties.
