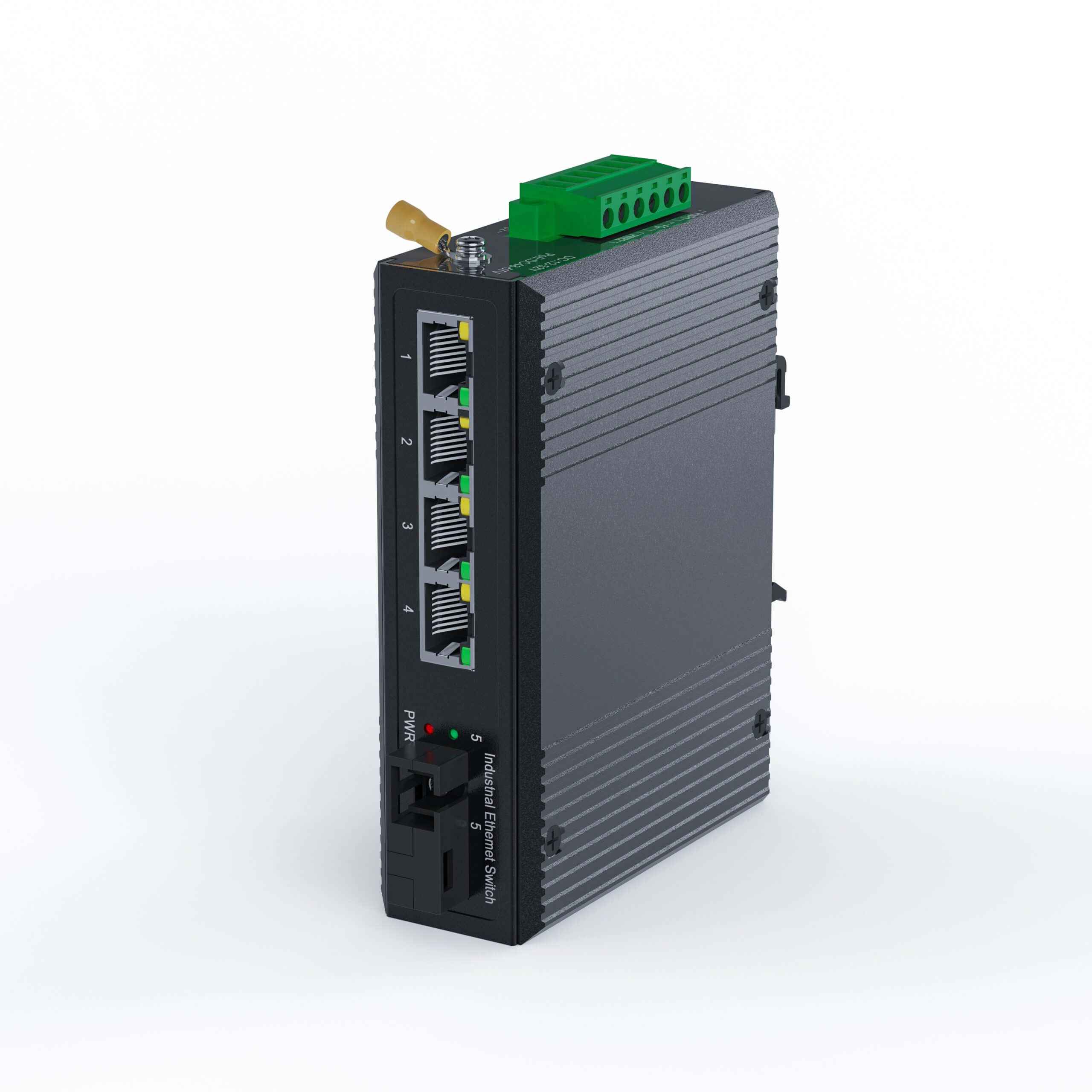

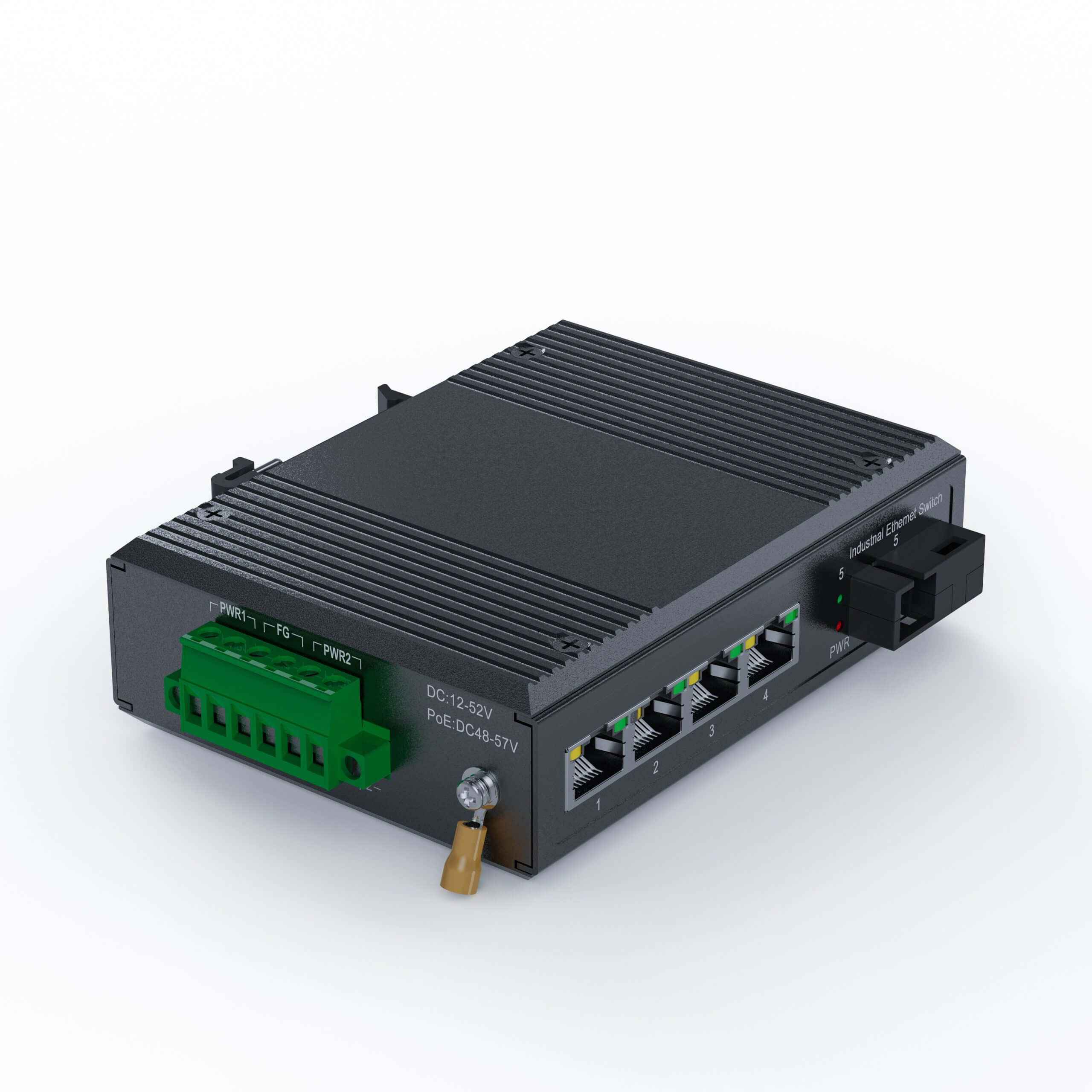

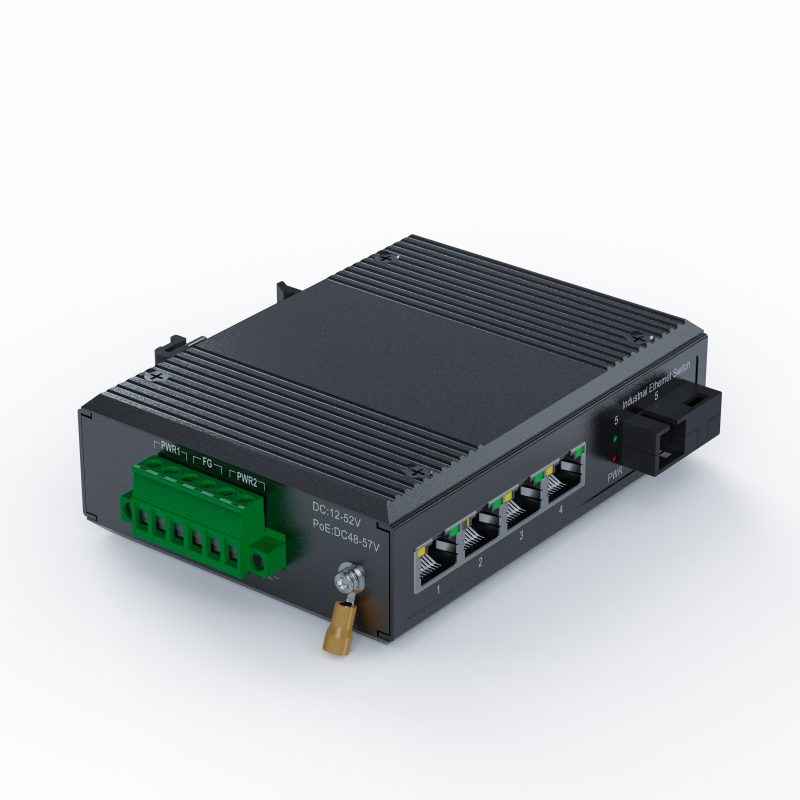

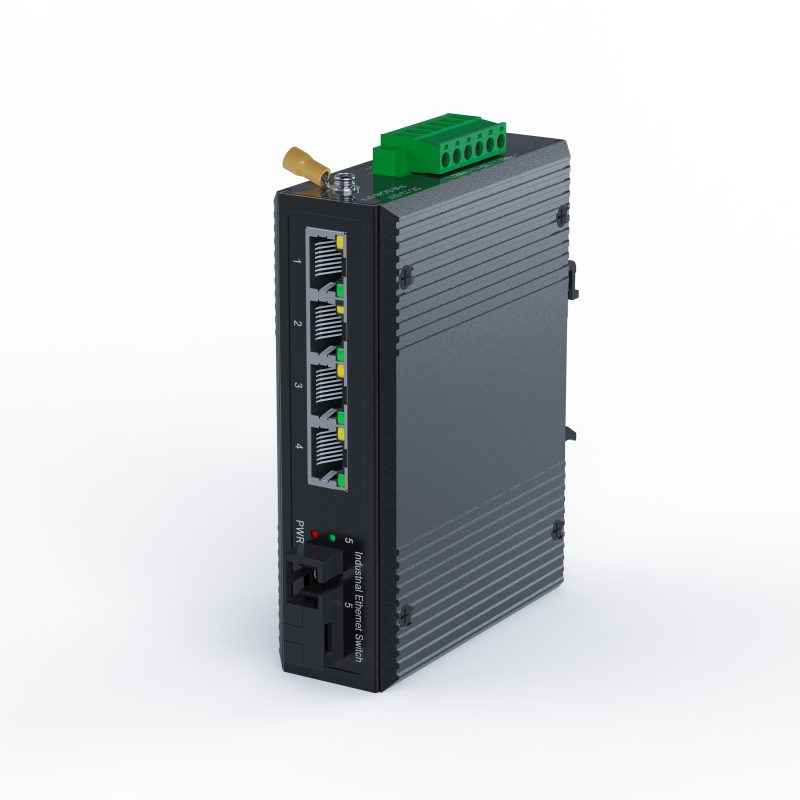

5口千兆非POE非管理型工业交换机

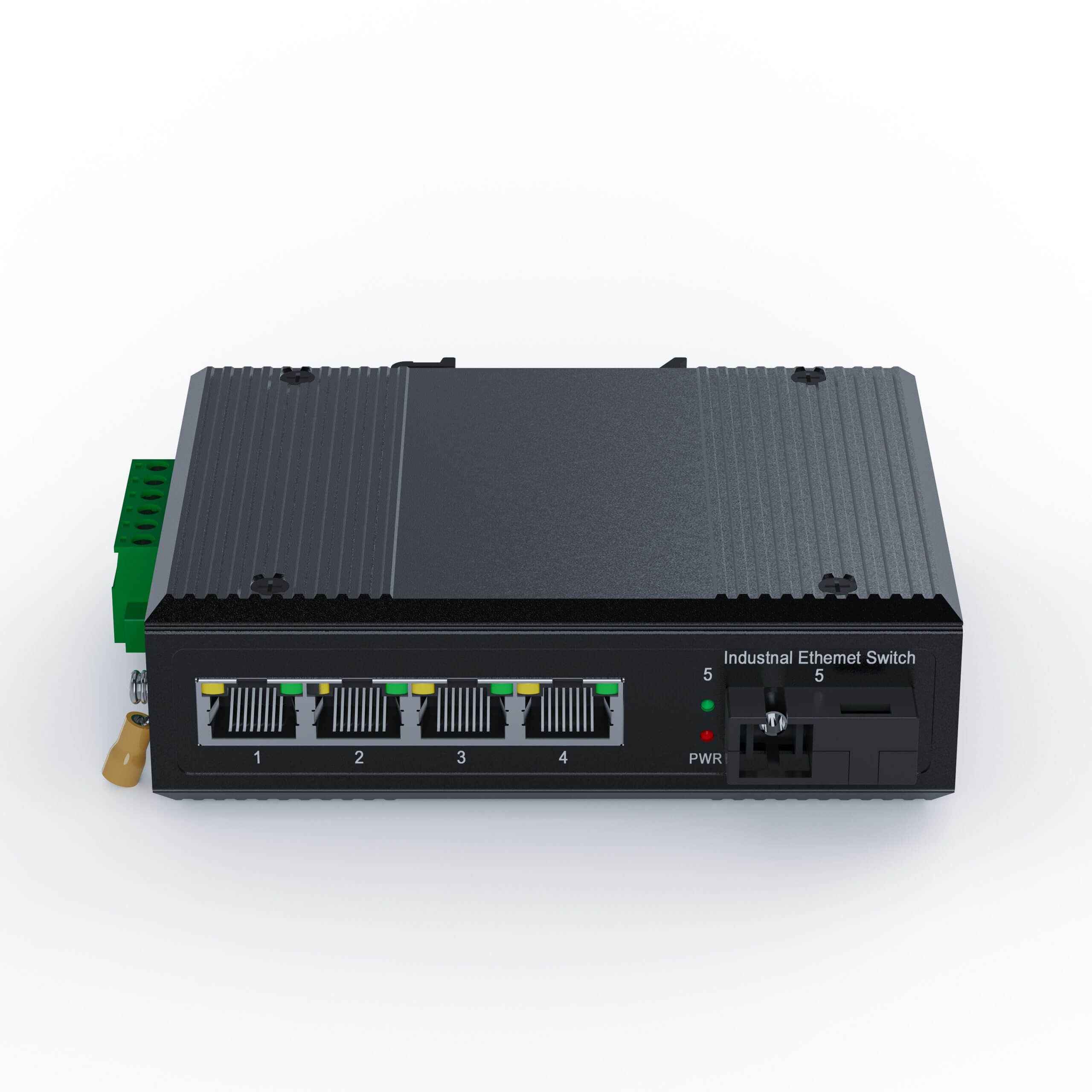

  • 4 × 10/100/1000Base-TX CAT5 RJ45 ports & 1 × 10/100/1000Base-X LC SFP uplink port.
  • Compatible 1310nm operating wavelength, single mode, LC duplex interface.
  • Energy-efficient technology for power savings
  • Standards-based technology ensures interoperability with any standardsbased devices in the existing network
  • Ideal for small office and home networks

1. Product Description

The industrial Ethernet switch provides excellent industrial quality, such as vibration resistance, high/low temperature, dustproof and surge protection, through the design of fanless heat dissipation circuit, wide range working enviorment temperature, high protection grade and so on, Moveover, it intergrates a variety of rich protocols such as routing, switching and security, which greatly improves the flexibility of networking and enhances the reliability and security of industrial networks. It can also meet the deployment equirements of rail transit, safe city, intel ligent transportation, outdoor monitoring and other harsh environments.

2. Specification

10/100/1000Mbs Ports
(Auto Uplink)
5 Enclosure Metal
Power On/Off Switch No Connector Type Metal

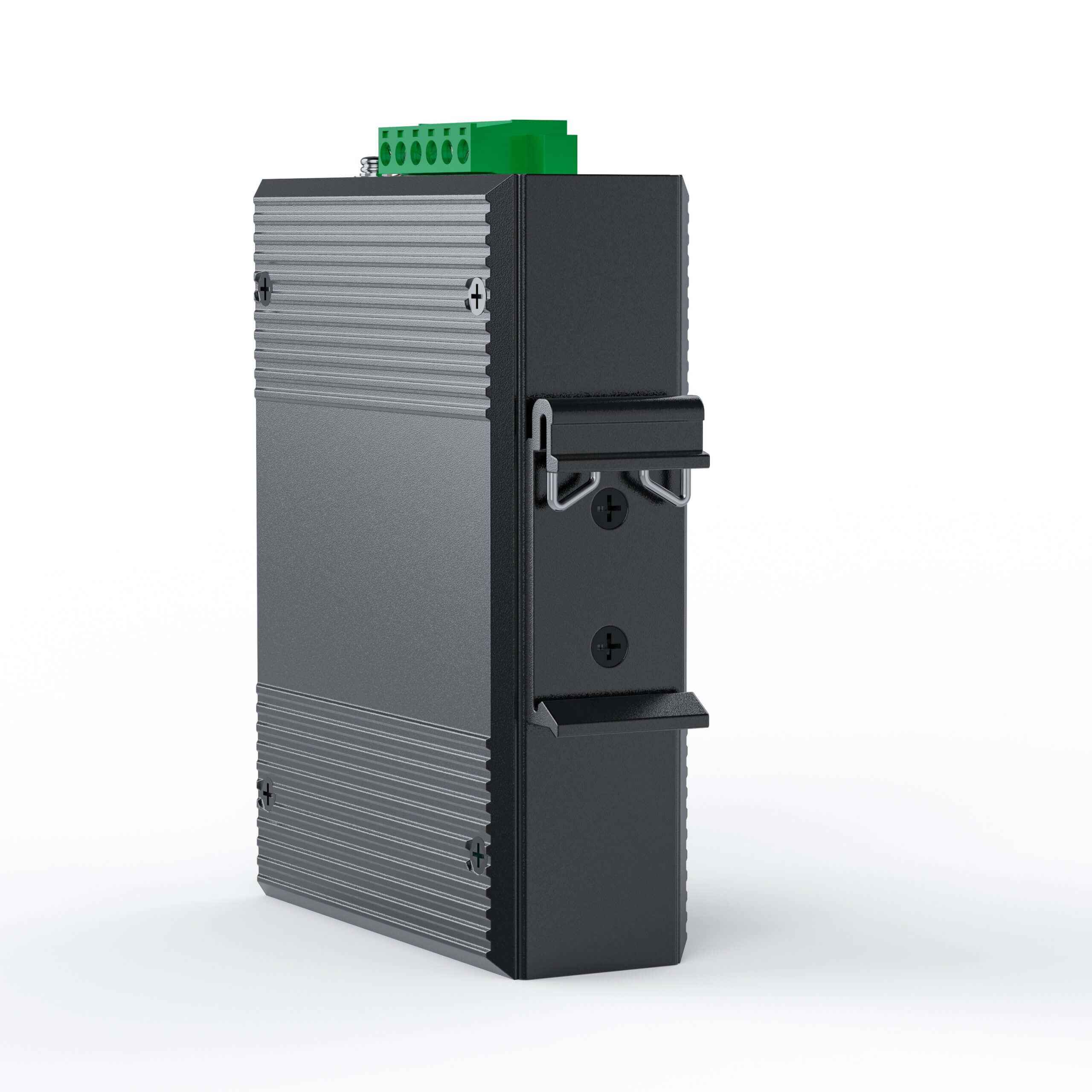

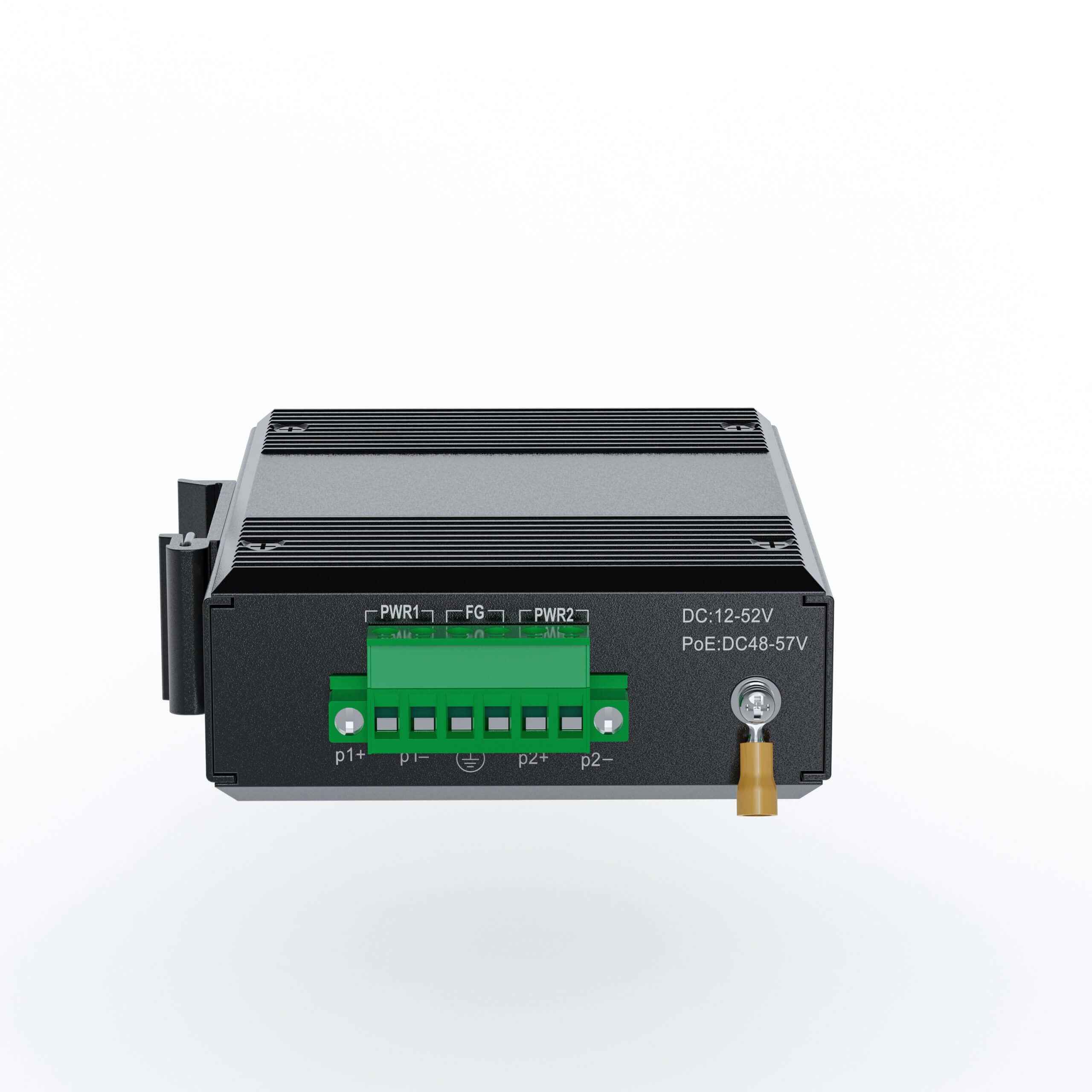

Mount Type DIN-Rail Input Voltage 12V-52V
Bandwidth(Non-Blocking) 10Gbps Packet Buffer Memory(Dynamically shared across only used ports) 128 KB
Jumbo Frame Support 9,216 bytes Queue WRP(Weighted Round Robin) Ratio 1:2:4:8
Latency(using 64-byte packets)-1000Mbs Port 1,448,000 pps Latency(using 64-byte packets)-1000Mbs Port <2.6 µsec
Per port Link/Activity Per device Power
Energy Efficient Ethernet
(IEEE 802.3az)
Yes Auto Power Down Yes
Short Cable Detection Yes Fan/Fanless Fanless
Operating temperature -40°~ 85°C Storage temperature -40°~85°C
Working humidity 10%~90% Storage humidity 10%~95%

3. IEEE Network Protocols

  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3i 10BASE-T Ethernet
  • IEEE 802.3x Flow Contro
  • IEEE 802.1p Priority QoS
  • IEEE 802.1p Priority QoS and DSCP
  • IEEE 802.3 CSMA/CD
  • 802.3az Energy Efficient Ethernet

4. Industry Standard

  • EMI:FCC Part 15 Subpart B Class A
  • EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3
  • EN 61000-4-3 (RS) Level 3
  • EN 61000-4-4 (EFT) Level 3
  • EN 61000-4-5 (Surge) Level 3
  • EN 61000-4-6 (CS) Level 3
  • EN 61000-4-8 Traffic Control:NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic:EN 50121-4
